The Optimal Six-Layer PCB Stackup for Noise Reduction and Shielding: Principles and Analysis

September 17, 2026
Technology Blog
7

In high-speed PCB design, the six-layer board is a golden stackup solution that balances routing density, noise reduction performance, and manufacturing cost. It is widely used in industrial control equipment, 5G terminals, automotive electronics, high-definition video, mixed-signal circuits, and other applications with stringent EMI/EMC performance requirements. Compared with the routing congestion and insufficient shielding of four-layer boards, as well as the high cost of eight-layer boards, an optimized six-layer PCB shielding stackup can effectively suppress crosstalk, radiated interference, and power supply noise, meeting the electromagnetic compatibility certification requirements of FCC, CE, and China’s 3C.

This article provides an in-depth breakdown of the optimal six-layer PCB stackup architecture for noise reduction and shielding. It offers a comprehensive analysis from six dimensions: core principles, standard stackup arrangements, noise reduction mechanisms, design specifications, common misconceptions, and application suitability. It aims to help hardware engineers quickly implement six-layer PCB design solutions with high shielding effectiveness, low noise, and mass-production capability.

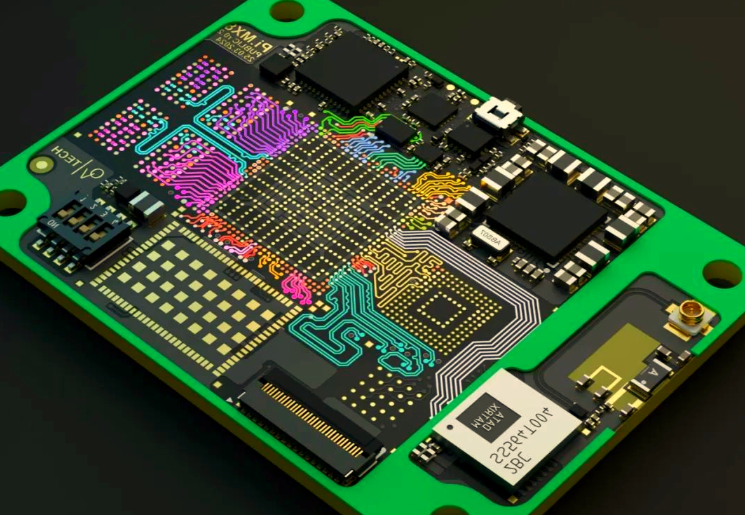

What Is Six-Layer PCB Stackup Design?

Six-layer PCB stackup design refers to the process of planning the functions of six copper layers (Layer 1 to Layer 6) before circuit board manufacturing. Based on signal integrity (SI), power integrity (PI), and electromagnetic compatibility (EMC) requirements, engineers determine the function of each layer—whether it is used for signal routing, power distribution, or as a reference ground plane—and establish the dielectric thickness and spacing between the layers.

Key conclusion: The optimal six-layer PCB stackup for noise reduction and shielding typically adopts a symmetrical structure of “Signal—Ground—Signal/Power—Signal/Power—Ground—Signal,” ensuring that every trace is positioned close to a complete reference plane. This provides the shortest signal return path and the strongest electromagnetic shielding effect.

Core Noise Reduction Principles of Six-Layer PCB Stackup Design

The main sources of electromagnetic noise in PCBs are concentrated in four major areas: signal crosstalk, power impedance fluctuations, high-frequency radiation, and disordered return paths. The fundamental logic behind the optimal six-layer stackup is to address noise problems at their source through the scientific arrangement of ground layers, power layers, and signal layers. Its core principles include four major mechanisms:

1. Complete Ground-Plane Shielding and Isolation Principle

A continuous and complete GND ground plane is the optimal electromagnetic shielding medium for a PCB. A complete ground layer can form a closed electromagnetic shielding cavity. On the one hand, it blocks external electromagnetic interference from entering sensitive inner-layer signals. On the other hand, it confines the electromagnetic fields of high-speed signals within the inner layers, preventing high-frequency signals from radiating outward and significantly reducing radiated emissions from the entire system. At the same time, a complete ground layer can provide a low-impedance return path, eliminating crosstalk and noise amplification caused by signal return-path deviation.

2. Plane Capacitance PDN Noise Reduction Principle

When the power layer and ground layer are closely adjacent, with a thin and uniform dielectric between them, they form a natural plane capacitance structure. This structure can significantly reduce the high-frequency impedance of the power distribution network (PDN), rapidly filter out power supply ripple and high-frequency noise, and stabilize the power supply voltage. It addresses power supply noise oscillations caused by dynamic loads in high-speed circuits and is a core design principle for power system noise reduction.

3. Stripline Low-Radiation Principle

An inner-layer signal surrounded by two ground layers forms a stripline structure. Compared with a surface microstrip, the electromagnetic field of a stripline is fully confined within the dielectric, reducing radiation intensity by more than 40%. Crosstalk between layers is almost negligible, making it the optimal routing structure for high-speed differential signals, clock signals, and sensitive analog signals.

4. Symmetrical Stackup Principle for Preventing Warpage

The optimal noise reduction stackup adopts an upper-and-lower symmetrical structure, allowing board material stresses to be released evenly. This effectively prevents warpage and deformation during high-temperature PCB processing and reflow soldering, ensuring the integrity and flatness of the ground and power layers. It indirectly guarantees stable shielding effectiveness and noise reduction performance, making the design suitable for high-volume production.

Comparison of Common Six-Layer PCB Stackup Schemes

Scheme	Layer Sequence (Top → Bottom)	Advantages	Disadvantages	Applicable Scenarios
Scheme A	Signal—Ground—Signal—Power—Ground—Signal	Every signal layer has an adjacent reference plane, providing the best shielding	Interlayer spacing for impedance control requires precise adjustment; slightly higher cost	High-speed digital and communication boards (recommended)
Scheme B	Signal—Ground—Power—Ground—Power—Signal	Multiple power planes provide excellent power integrity	Only two signal layers are available, limiting routing density	High-current power modules
Scheme C	Signal—Signal—Ground—Power—Signal—Signal	More routing layers and flexible routing	Some signal layers lack an adjacent reference plane, resulting in high EMI risk	Low-speed, cost-sensitive products (not recommended for high-noise applications)
Scheme D	Signal—Ground—Signal—Ground—Signal—Ground	Strongest shielding effect and excellent noise suppression	No independent power plane; power must be distributed through vias, increasing PI design complexity	High-frequency RF and applications with stringent EMC requirements

Standard Optimal Six-Layer PCB Stackup for Noise Reduction and Shielding

Combining EMC noise reduction, shielding performance, routing flexibility, and mass-production compatibility, the industry-recognized optimal stackup for six-layer boards is a dual-ground-plane-enclosed structure with a power plane in the middle. It is also the preferred architecture for high-end industrial control, automotive, and high-speed communication equipment. The specific layer sequence (from top to bottom) and functional analysis are as follows:

L1 Top Layer: Surface Signal Layer (Low-Speed / Interface / Auxiliary Signals)

Located directly adjacent to the complete ground plane on L2, this layer uses microstrip routing and has a complete return-path reference plane. Priority should be given to low-speed control signals, button interfaces, power interfaces, and low-frequency peripheral lines. High-speed clocks, DDR, differential signals, and sensitive analog signals are prohibited. Surface traces should be short, sparse, and straight to reduce the risk of exposed high-frequency radiation.

L2 Second Layer: Complete Main Ground Plane (Core Shielding Layer)

This is the key layer for noise reduction in a six-layer board. It should be fully covered with ground throughout the entire board, with no large-area openings, splits, or signal routing. It serves as the sole return-path reference for L1 surface signals while isolating surface components and traces from inner-layer circuits. It blocks the inward coupling of high-frequency noise from surface circuitry and prevents external interference from entering the inner layers, forming the first shielding barrier.

L3 Third Layer: Inner High-Speed Signal Layer (Core Sensitive Signals)

Enclosed between the L2 ground plane and the L4 power plane, this layer forms a quasi-stripline shielding structure with an optimal electromagnetic environment. It is dedicated to routing high-speed differential lines, clock signals, DDR buses, small analog signals, and RF-sensitive traces. Interlayer crosstalk is extremely low, and electromagnetic fields are fully confined, providing both low radiation and high interference immunity. It is the core signal routing layer of the entire system.

L4 Fourth Layer: Complete Power Plane (PDN Voltage-Stabilization Layer)

A complete copper power plane is used, with reasonable partitioning according to requirements (3.3V, 5V, 12V, etc.). Partition gaps should be as narrow and concentrated as possible to avoid compromising plane integrity. Closely coupled with the L5 ground plane, it forms a plane capacitance structure that minimizes the high-frequency impedance of the PDN, filters power supply noise and ripple, and provides stable power to the entire circuit.

L5 Fifth Layer: Complete Secondary Ground Plane (Secondary Shielding Layer)

Designed symmetrically with the L2 ground plane, this layer is fully covered with ground without interruptions and serves two purposes: first, it provides a return-path reference for the L4 power plane, optimizing power noise reduction; second, it shields the L6 bottom-layer signals, isolating bottom-layer noise from the inner-layer circuits and forming a dual-layer ground-cage shielding structure for the entire system, effectively preventing interlayer electromagnetic crosstalk.

L6 Bottom Layer: Surface Signal Layer (Low-Speed / Power Signals)

Arranged symmetrically with L1, this layer is directly adjacent to the complete L5 ground plane, ensuring complete return paths. It mainly accommodates power components, low-frequency traces, grounding and thermal pads, and peripheral interface lines. High-speed sensitive signals should likewise be avoided, ensuring that electromagnetic radiation throughout the system remains uniform and controllable.

Core Noise Reduction and Shielding Advantages of the Optimal Stackup

Compared with conventional six-layer board arrangements featuring adjacent signal layers, incomplete ground planes, and exposed power planes, the noise reduction and shielding advantages of this high-end stackup are particularly significant, making it well suited to stringent EMC certification scenarios:

1. Full-Area Dual-Layer Ground-Cage Shielding for Maximum Interference Immunity

The two complete ground planes, L2 and L5, form an enclosed ground cage that completely surrounds the inner-layer high-speed signals and power system, achieving “no external interference in, no internal interference out.” This effectively addresses electromagnetic interference in industrial environments, RF signal crosstalk, and interference between high- and low-voltage circuits. It is ideally suited to the complex operating conditions of industrial control, automotive, and IoT equipment.

2. Exceptional PDN Performance for Thorough Power Noise Suppression

The power and ground planes are closely coupled, with a uniform dielectric thickness that maximizes the plane capacitance effect. This enables rapid absorption of high-frequency power ripple, switching noise, and load-transient noise. Power impedance remains low across the entire frequency range, preventing issues such as system crashes, screen flickering, and signal distortion caused by voltage fluctuations and noise interference.

3. Zero Crosstalk in High-Speed Signals and a 100% Radiation Compliance Rate

Core high-speed signals are concentrated in the inner-layer stripline region of L3, eliminating the risk of exposed radiation. There are no adjacent signal layers, completely avoiding broadside crosstalk. High- and low-speed signals, as well as digital and analog signals, are physically isolated, addressing common noise and crosstalk challenges in mixed-signal circuits through the stackup structure itself.

4. Symmetrical Structure for Greater Mass-Production Stability

The entire board adopts a vertically symmetrical stackup, balancing material stresses and significantly reducing PCB warpage. This helps prevent cold solder joints and component misalignment during mass-production soldering. The high integrity of the ground and power planes ensures that shielding and noise reduction performance remains consistent across production batches, making the design suitable for large-scale industrial manufacturing.

Mandatory Design Specifications for Six-Layer PCB Noise Reduction Stackups

A high-quality stackup architecture must be accompanied by standardized design rules. Otherwise, the advantages of shielding and noise reduction will be severely compromised. The following are industry-recognized mandatory design guidelines:

1. Absolute Ground-Plane Integrity Principle

Large-area splits, cross-region routing, and dense openings are prohibited on the L2 and L5 ground planes. Any gap in a ground plane can disrupt the return path, resulting in shielding failure and a sharp increase in noise. If openings are necessary, proper ground filling and grounding-via treatment must be implemented to ensure ground-plane continuity.

2. Signal-Layer Isolation Principle

High- and low-speed signals, as well as digital and analog signals, must be routed in strictly separated regions. Mixed routing and crossing on the same layer are prohibited. Only low-speed signals should be routed on the surface layers. Core high-speed and sensitive signals must be routed on the inner layers to prevent excessive high-frequency radiation from the surface.

3. Dielectric Thickness Optimization Principle

The dielectric between signals and their corresponding reference ground planes should be as thin as possible to strengthen return-path coupling and reduce crosstalk. The dielectric between power and ground planes should be uniform and controllable to maximize the plane capacitance effect and improve noise reduction. The 20H rule should be strictly followed, with the power plane pulled inward to avoid edge radiation.

4. Grounding-Via Specifications

Grounding vias should be placed close to high-speed signal-layer transition vias to shorten return paths. Grounding-via arrays should be added in densely routed areas to reinforce shielding and suppress high-frequency noise radiation caused by vias.

Comparison of Common Poor Stackup Designs and Their Noise Reduction Defects

Many engineers adopt stackup arrangements with adjacent signal layers and missing ground-plane isolation for the sake of routing convenience. These designs present serious EMI risks, with the following specific defects:

Poor Design 1: Three Consecutive Signal Layers

Multiple adjacent signal layers lack ground-plane isolation, resulting in severe interlayer crosstalk. High- and low-speed signals interfere with each other, high-frequency radiation exceeds limits, and the design may fail to pass EMC certification.

Poor Design 2: Exposed Surface Power Plane

The power plane lacks ground-plane shielding, allowing high-frequency power noise to radiate outward while making it highly susceptible to external interference. PDN noise reduction performance is completely compromised.

Poor Design 3: Split and Fragmented Ground Planes

Return paths become disordered, impedance rises sharply, signal integrity deteriorates, and the noise floor increases significantly, leading to reduced equipment stability.

Application Summary of the Optimal Stackup

This six-layer PCB noise reduction and shielding stackup is suitable for applications with high requirements for electromagnetic compatibility and signal stability, including industrial control motherboards, automotive industrial control equipment, 5G/IoT communication modules, high-definition video capture boards, high-speed DDR circuits, mixed-signal circuit boards, and precision medical electronic equipment.

For ordinary low-speed consumer electronics and simple control boards, the stackup may be simplified appropriately. However, for equipment that must pass certification, operate reliably over the long term, or function in complex electromagnetic environments, this optimal shielding stackup architecture should be adopted.

Conclusion

The core logic of the optimal six-layer PCB stackup for noise reduction and shielding is to construct a shielding ground cage with two complete ground planes, optimize PDN noise reduction through power-ground plane coupling, ensure high-speed signal integrity with inner-layer striplines, and guarantee mass-production stability through a symmetrical stackup. This standardized architecture addresses more than 80% of EMI noise, crosstalk, and radiation problems at the underlying PCB structural level, providing an optimal solution that balances performance, cost, and mass production.

When designing six-layer PCBs, hardware engineers should prioritize implementing this stackup scheme. Combined with standardized routing, grounding, and dielectric design, it can significantly improve PCB electromagnetic compatibility, facilitate one-time compliance with various EMC certifications, and avoid the costs of subsequent redesigns and noise reduction modifications.
